Calculated Industries

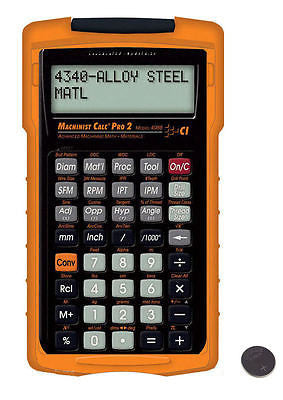

Calculated Industries Machinist Calc Pro 2 Calculator 4088 with Spare CR2025 Battery
Calculated Industries Machinist Calc Pro 2 Model 4088 with Hard Case
One (1) Spare CR2025 Battery Included
One (1) Spare CR2025 Battery Included
The Machinist Calc Pro 2 now includes materials and tool settings combined with DOC and WOC to solve all your speed and feed calculations for face, end or slot milling plus turning, drilling and boring. It also gives you step-saving drill and thread chart look-ups, right triangle solutions, bolt-circle patterns, a larger 2-line LCD display and much more all built into a portable, rugged and cost-effective handheld calculator.
Includes a rugged shock, dust and moisture resistant Armadillo Gear protective case. Store display carton, batteries, warranty card and instructions are included. See gallery image above for more details.
Built-in Functions and Calculations:
- New - Machining-specific keys to enter or calculate Surface Feet per Minute (SFM), Inches per Tooth (IPT), Inches per Minute (IPM), Inches per Revolution (IPR), # of Teeth, Depth of Cut (DOC), Width of Cut (WOC) and Length of Cut (LOC)
- New - Materials - Choose from 20 popular Materials
- New - Processes - Face Milling, End Milling, Slot Milling, Turning, Boring, Drilling
- New - Tools - High Speed, Carbide and High Performance
- Speeds and Feeds - calculate for milling, turning and drilling; cutting speed, spindle speed (RPM), feed rate (IPM), cutting feed, feed per tooth/chip load, number of Teeth and Radial Chip Thinning adjustment factor
- Built-in Drill and Thread Size Tables save time and steps (Compliant with ANSI/ASME B1.1-2003 and ANSI/ASME B1.13M-2005)
- Enter Numeric, Fractional, Metric Thread Sizes and Drill Sizes - and display tap, roll tap, close and free fit drill sizes plus pitch, major and minor diameters
- Right Triangle Math - plus trigonometric functions
- Drill Points - enter the cutting angle and drill size to calculate the drill point cut depth
- Bolt Pattern Layouts - enter start angle, number of bolts, diameter and optional x, y offset; calculate x and y coordinates. Find center-to-center spacing for bolt pattern layouts
- 3-Wire Measure - enter Wire Size (or use calculated Best Wire size) and 3-Wire Measurement to calculate pitch diameter
Great for Machinists, Setters, Tool and Die Makers, Supervisors, Shop Owners
Dedicated Functions:- Speeds and Feeds - Calculate for Milling, Turning, Boring and Drilling; Spindle Speed (RPM), Feed Rate (IPM), Cut Speed, Cut Feed, Feed per Tooth, Number of Teeth and Radial Chip Thinning adjustment factor
- Thread Size - Enter numeric, fractional or metric thread sizes and display tap, roll tap, close and free fit drill sizes. Display pitch, major and minor diameters
- Drill Point - Enter the cutting angle and Drill Size and calculate the Drill Point cut depth
- Drill Size - Enter numeric, letter, fractional or metric Drill Size and display the closest fitting Drill Size and scroll through available drill sizes
- 3-Wire Measure - Enter Wire Size (or use calculated Best Wire size) and 3-Wire Measurement to calculate pitch diameter
- Trigonometric Functions - Sine, Cosine, Tangent, Arcsine, Arccosine, Arctangent
- Right Triangle Math - Enter, calculate Angle, Hypotenuse, Opposite and Adjacent side lengths
Additional Features:
- Thread Classification Tables
- U.S. Internal (3) 1B, 2B, 3B
- External (3) 1A, 2A, 3A
- Metric Internal (14) 3G-9G and 3H-9H
- External (28) 3g-9g, 3h-9h, 3e-9e, 3f-9f
- U.S. Internal (3) 1B, 2B, 3B
- U.S. and Metric Unit Entries and Conversions
- Decimal Inches/mils
- Feet-Inch-Fractions
- m, mm, cm
- Area, Volume and Weight
- Works as a Standard Calculator
- Rugged, shock-, moisture- and dust-resistant Armadillo Gear case
- Quick Reference Guide and complete, easy-to-follow User Guide
- One 3-volt CR2025 Long-life Battery & One (1) Spare Battery
- Full One-Year Limited Warranty
